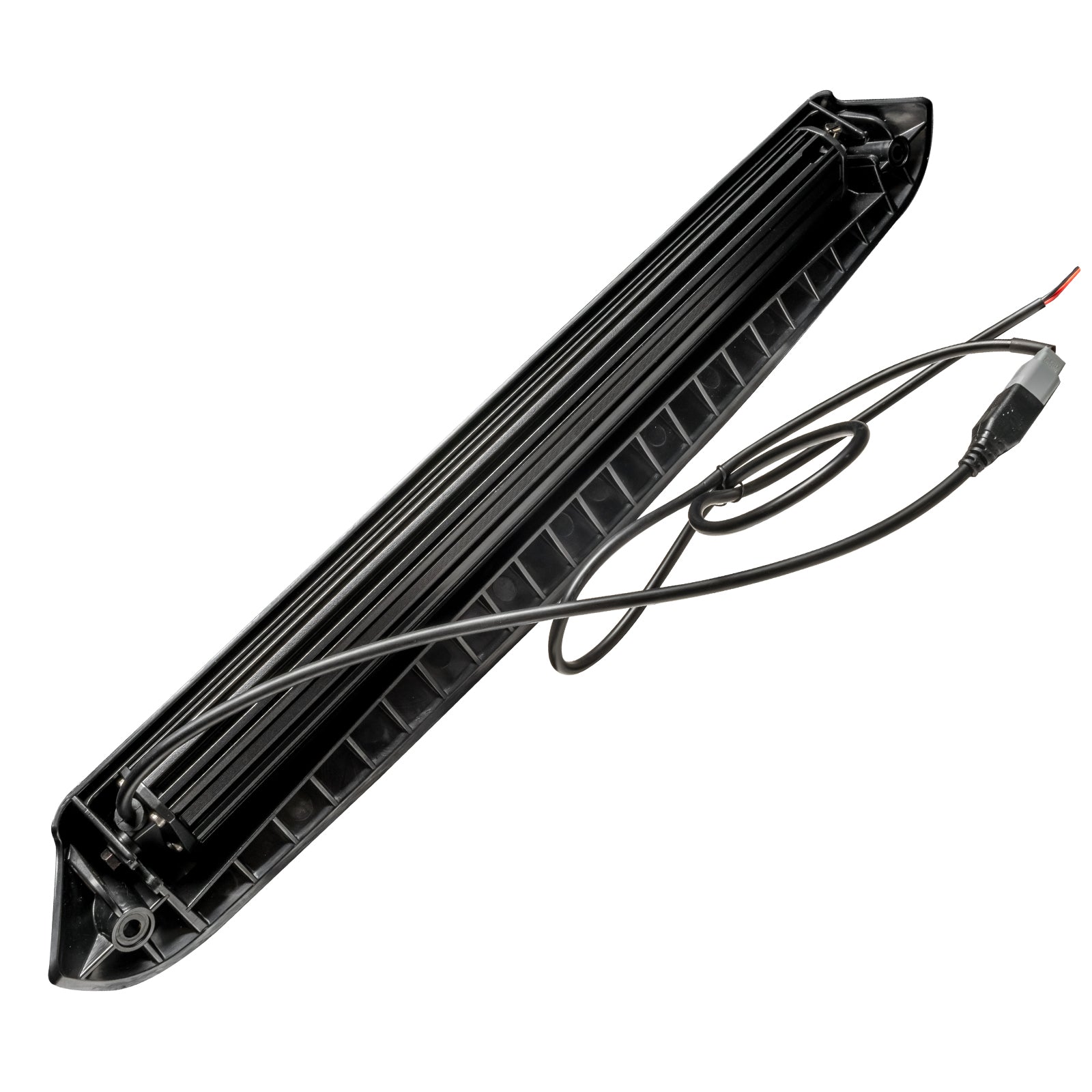

This unique new lighting system from ORACLE Lighting provides functional forward LED lighting while maintaining a factory appearance. Our high powered 100W LED light bar is fitted into a housing which is designed to mimic the shape of the original factory bumper and integrate into the front end of the 2019+ RAM 1500 TRX or Rebel. The lighting system is installed using rivet nuts, which require 2 holes 3/8" to attach the bar to the bumper. Wiring can easily connect to the factory AUX switches, if your truck is not equipped with AUX switches, we recommend you add our switched light bar wiring harness PART #2088-504 The projection of the light bar is a mixed beam with 8 of the LEDs using a flood (45? angle) beam and 12 of the LEDs using a spot (25? angle) beam the user gets the advantages of both a wide field of vision and a long narrow beam. With the average Apex Angle of 33? (8x45? + 12x25?) and calculating based on 14000Lm the total candela of the light is 54107.70cd.
- Optics: Mixed Spot/ Flood
Attributes:
- Brand Name: Oracle Lighting
- GTIN: 00810030397977
- Add-On: N/A
- Amperage: 7.5A @ 12VDC
- Base Color: Black
- Base Diameter: 31.98
- Base Length: 31.84
- Base Material: 6061-T6 Billet Aluminum
- Brightness: 12000
- Color: Amber Lens
- DOT Approved: No
- Housing: Polycarbonate
- Housing Color: Black
- Housing Finish: Painted
- Housing Material: Composite
- Housing Shape: Rectangle
- LED: Osram CRDP LED Chip
- LED Life: 50,000+ Hours
- Lens: Optically Clear Lexan
- Lens Color: Yellow
- Lens Diameter: 18.76
- Lens Length: 18.75
- Lens Material: Polycarbonate
- Lens Width: 1.91
- Light Beam Pattern: Combination
- Light Quantity: 20
- Lumen Output: 12,000lm
- Mounting Hardware Included: Yes
- Optics: Mixed Spot/ Flood
- Relay Included: No
- Street Legal: No
- Switch Included: No
- Terminal Quantity: 2
- Terminal Type: Lead Wire
- Voltage: 12
- Wattage: 100
- Watts: 100W (20x 5W LED)
- Wire Gauge Measurement: 16
- Wire Quantity: 2
- Wiring Harness Included: Yes
- Wiring Harness Length: 36
Extended Information:
- Country of Origin: US
- Emissions : Emissions Compliance Exempt
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 6 x 6 x 30 inches
- Weight: 4 POUNDS
